The Punch Tools Outside Corner Rounder is a spring-loaded punch designed to radius-trim the corner of parts. Our Corner Rounder features 4 different corner rads in a single cutting unit.
Simply rotate the die on the base to switch between rads (click the images below for further details), or click here to learn more about the corner rounder and the MUTCD corner rounder.

Quick and easy way to radius-trim part corners without the cost of complex tooling! Effortlessly round corners on thick or thin aluminum, stainless steel, mild steel, and more.

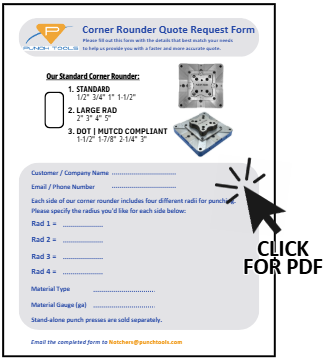

Need a Custom Corner Rounder Size?

Please fill out this form and email it to notchers@punchtools.com with your requirements or any additional information.

Corner Rounder

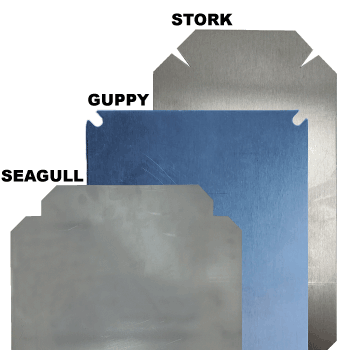

Corner Notcher


Optional shaped rounds, including DOT or custom radii, can be added per spec—ask for details!

Call: 1.800.668.4996
Click here to email us!

Versatile and reliable, these tools are perfect for large-volume work with a single operator. Need a standalone benchtop press? We’ve got you covered with our Air Powered PortaPress!

Clean, burr-free cuts every time.

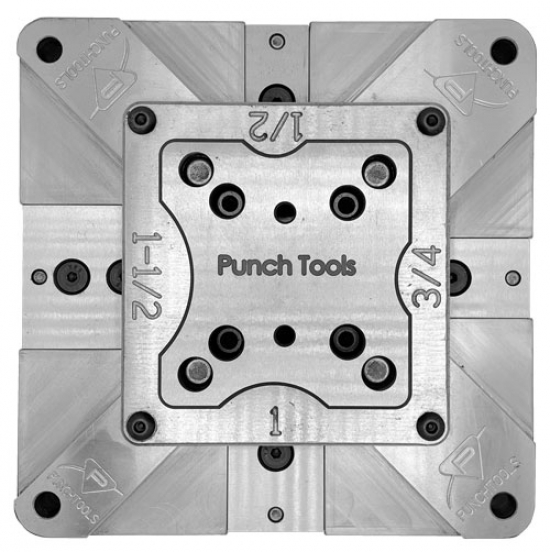

Our Corner Rounder features four different outside radii for versatile notching. Popular Outside Radii Angle Options:

Standard: 1/2" , 3/4" , 1" , 1-1/2"

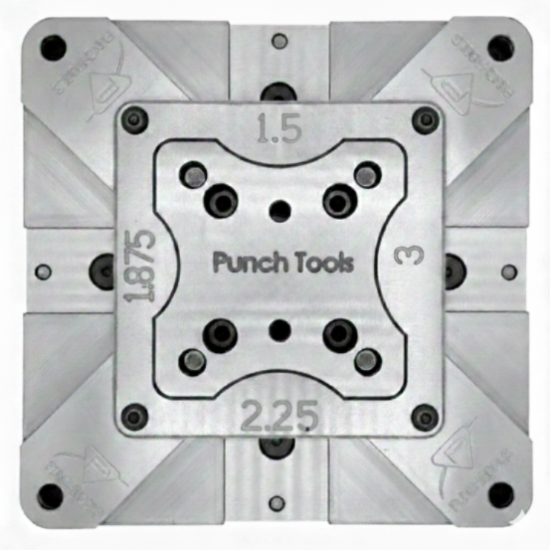

DOT: 1.5", 1.875", 2.25", 3"
Large RAD: 2", 3", 4", 5"
For custom radii angles, please complete this form and email it to notchers@punchtools.com

The punch base is square and rotates for 4 different radii. By pivoting the base, you can easily switch between radii.

Can handle up to:

Mild Steel: .015" up to .075"
Aluminum: .015" up to .125"

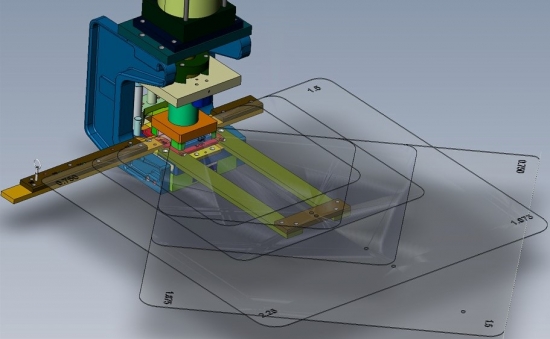

Works with any power source: ironworker, press brake, power press, porta press, or any between two to five tons minimum.

Setup and adjustment are straightforward, ensuring clean, burr-free cuts. Press brake mounting is available for added convenience.
